7" RTP TFT LCD Display
1. Key Features

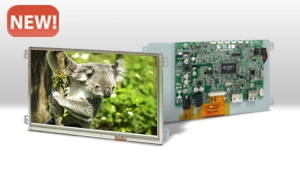

LP070A0654-FNR is one 7" TFT-LCD Module integrated with driver board/ controller board and optional resistive touch panel. HDMI is all available. USB/ RS232 can facilitate users' bridging to Touch panel. Perfect choice for applications with raspberry PI.
Feature: General Purpose,Simple and Compact Design/ Easy Installation, Plug and Play, Low Cost.
2. Product Specification
| Size ( Diagonal ) | 7" |
| Model Name | LP070A0654-FNR |
| Display Format (H×V) | 1024×600 |
| Aspect Ratio | 16:9 |
| Brightness w/o TSP | 250 |
| Brightness (TSP) | 200 |
| Contrast Ratio | 700 |
| View Angle | 75/75/70/75 |
| Input Signal System | HDMI |
| Outline Dimensions (W×H×D) | 180.5×107.19×24.1 |
| Touch Panel (USB / RS232) | 4W RTP (USB) |
| Audio Amplifier | 46mw@32 |
| Audio 3.5Φ Jack (Line-In) / Out) | Headphone |
3. Features
General Purpose
Simple and Compact Design
Easy to Mount
Feasible to customize the place of OSD key, Cable, Connector for your need
Plug and Play
4. Certification
5. Trade Terms
|
1. Payment Terms: T/T In advance 2. Delivery: Lead time for Sample/ Small Quantity: 2-4 weeks. Lead time for Mass Production: 6-8 weeks 3. Validity: Within 30 days since quotation date 4. Incoterms: EXW/ FOB Taiwan 5. Warranty: 1 year |
6. Contact
Flat Display Technology Corp. is one professional TFT LCD solution provider and having more than 25 years' experiences.We believe you will be satisfied with our products if you are searching for a reliable supplier in this field. Specialize in TFT range from 3.5"-17". Should you need any assistance, please feel free to contact us. http://www.fdt.com.tw/
